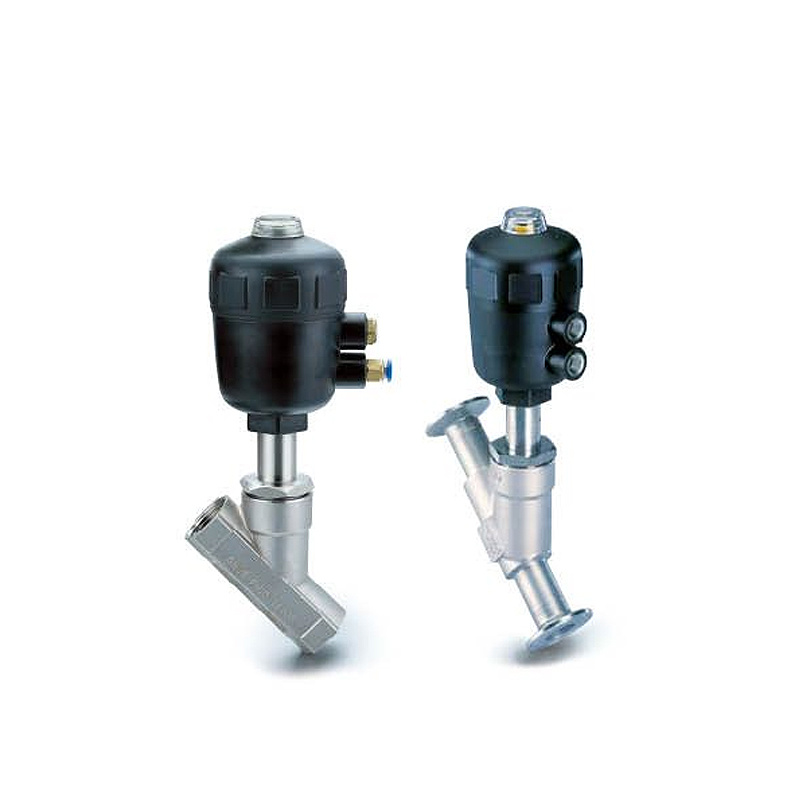

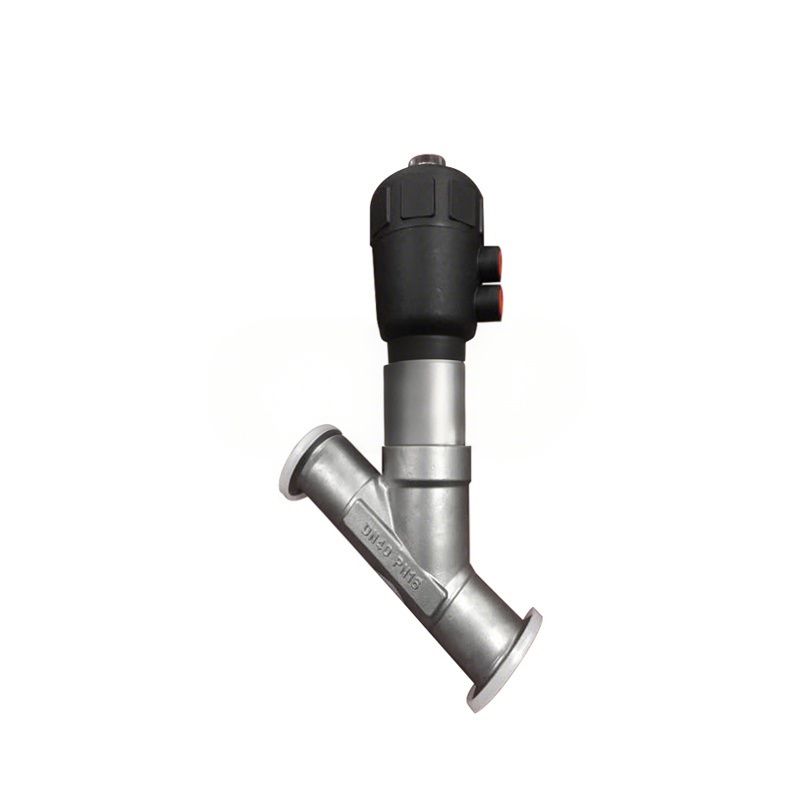

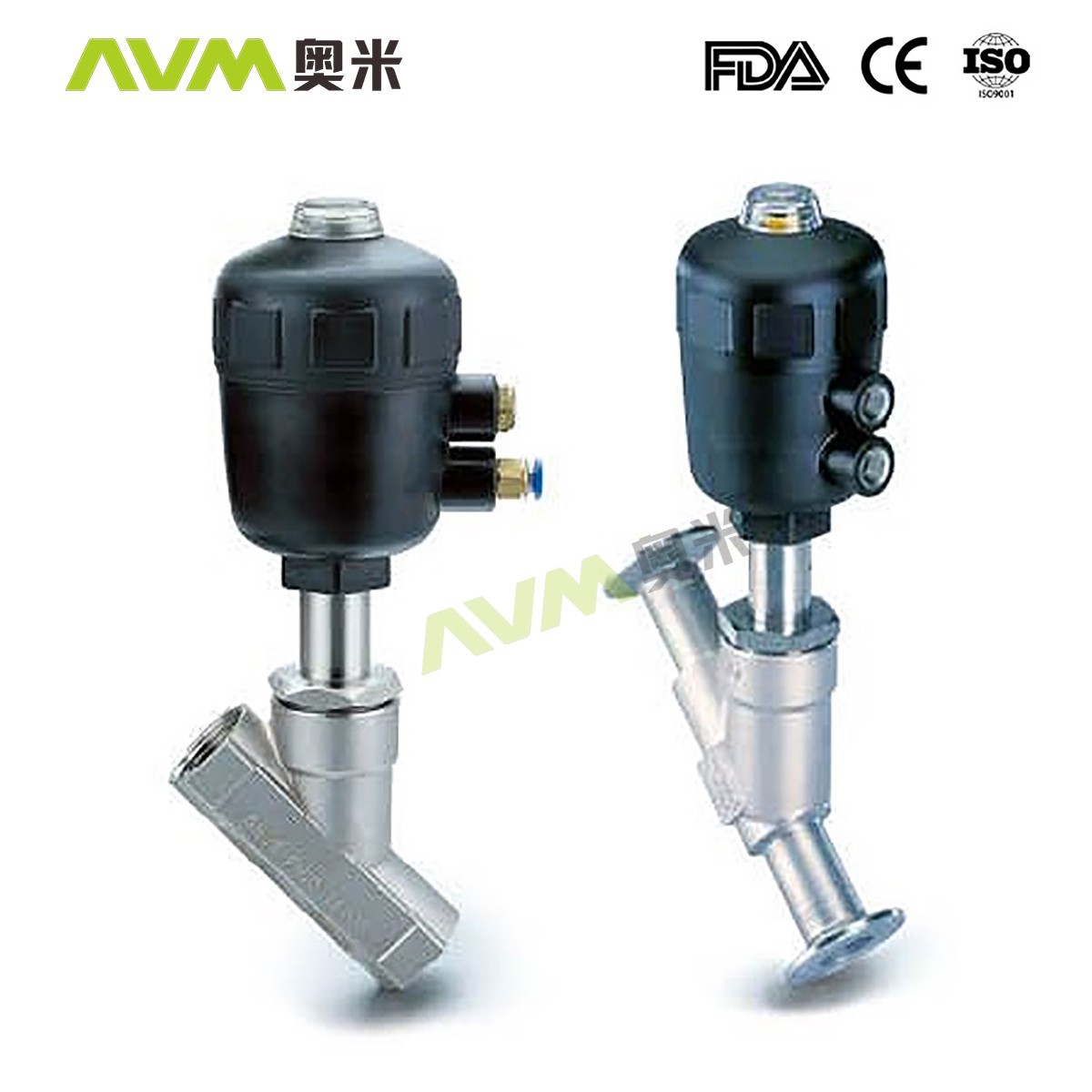

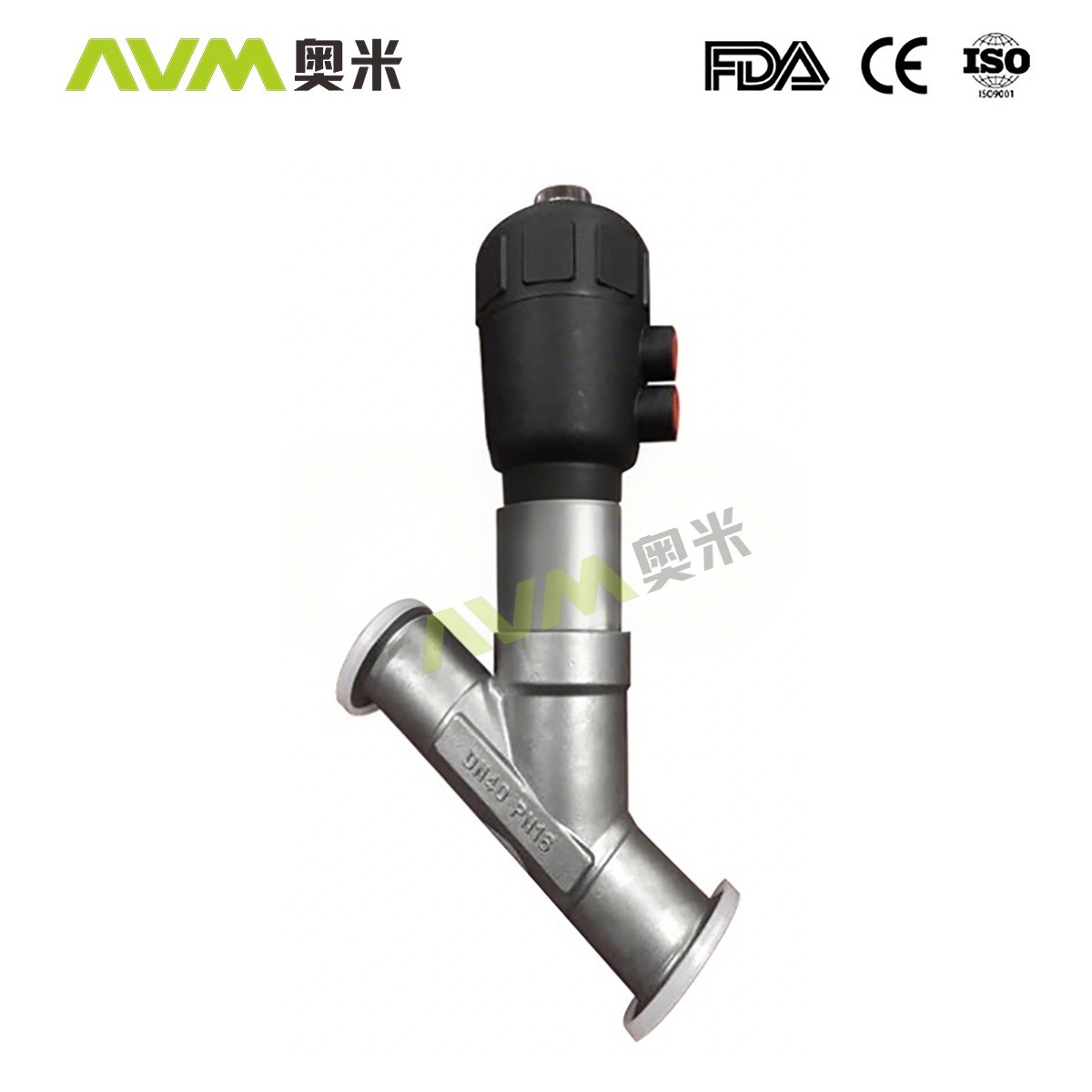

JZ5 Pneumatic Angle Seat Valve

没有此类产品
Description
Application

JZ5 series angle seat valve is a pneumatic control valve. It is widely used in food and chemical processes, sterilizers, autoclaves, dry cleaners, clothes dryers, beer. Especially suitable for steam piping system. Production line, etc.

working principle

The JZ5 series angle seat valve works the same as the stop valve, but the valve body adopts a Y-shaped valve body structure type with a pneumatic actuator, which enlarges the flow section of the valve cavity, makes the fluid in the valve cavity more stable, and increases by 30 % Of traffic. At the same time, the change of the medium flow direction can be equipped with a smaller actuator.

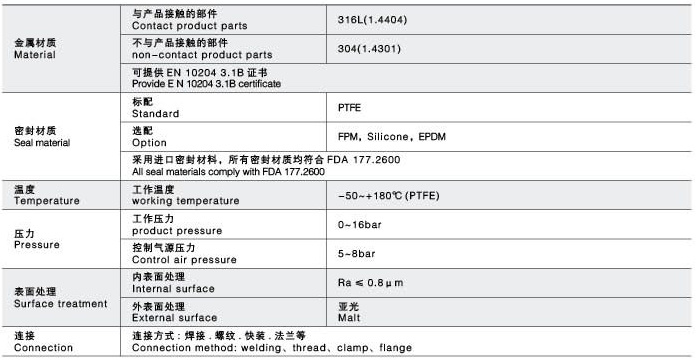

Technical parameter



Corresponding parameter set not found, please add it in property template of background
