AMH Centrifugal Pumps

没有此类产品
Description
Applications

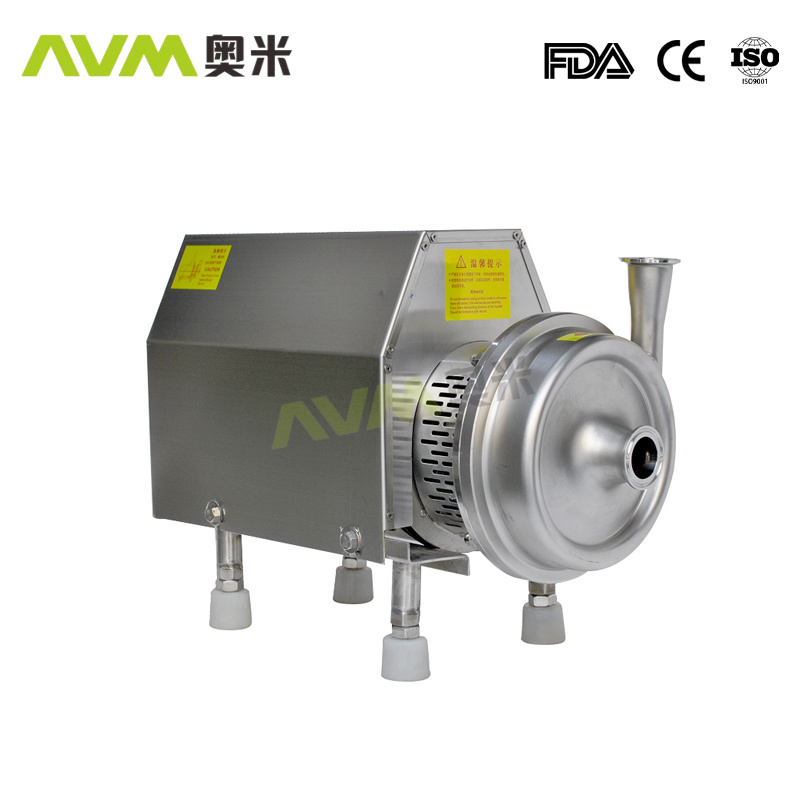

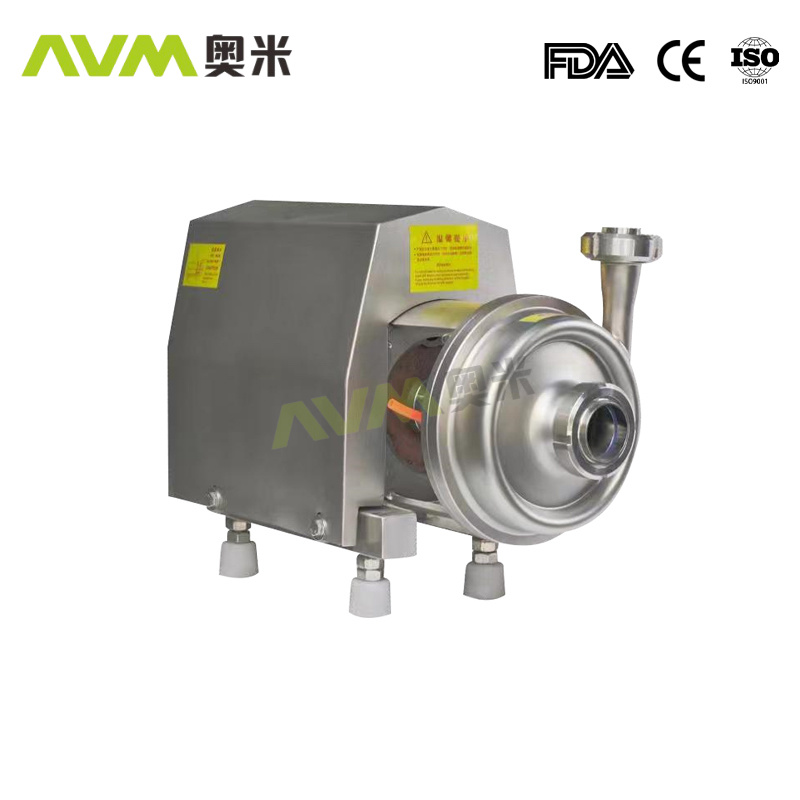

●The centrifugal pump is manufactured in stainless steel and with a hrouded motor.
●Its sanitary and cost- efficient design makes it perfect for the dairies, beverages, food- processing, pharmaceutical and fine chemicals industries.

Operating Principles

●Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.
●This pump is not reversible by simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.


Design Features

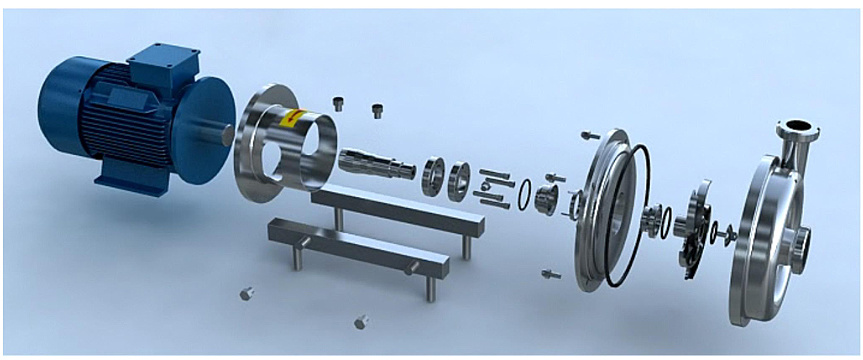

●Casing manufactured with cold-formed plate. Open impeller and close impeller manufactured with stainless steel investment casting.
●Adjustable stainless steel legs. Pump designed according to 3A sanitary standards. IEC NEMA B34 motors, IP 55, F-class insulation,50HZ,60HZ.






Options

● Mechanical seal in: C/St.S and SiC/Sic).
● Gaskets in: FPM (Viton)and PTFE.
● Connections: Clamp,thread,flange,DIN,SMS,RJT,IDF.
● Motor 2900, 1450,3600 rev ./min., 50HZ 60HZ.

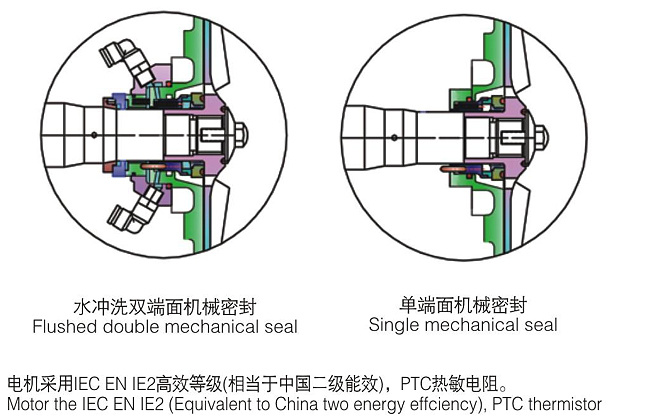

● Single mechanical seal(standard).
● Flushed couble mechanical seal(Options).


Materials

● Parts in contact with pumped media: AISI 316L/AISI304.
● Gaskets (standard): EPDM (FDA).
● Mechanical seal (standard): C/SiC/EPDM.
● Inside surface finishing: Ra≤0.8 um.
● Outside surface finishing: Sandblast or Mirror Polish.

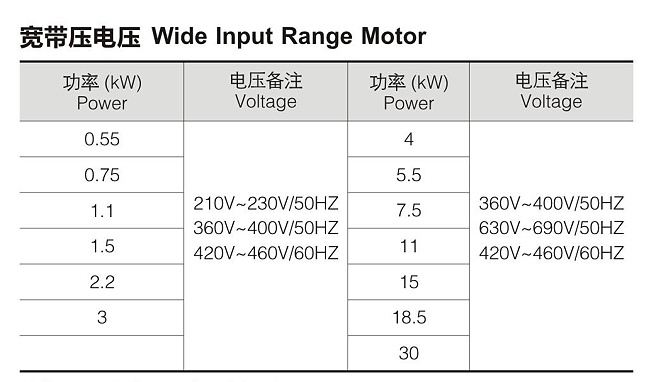

Please contact us for other voltage and frequency motors.
