Ball valve

Classification:

Sanitary Ball Valve

keywords： Ball valve

Sanitary valves are key equipment widely used in industries such as pharmaceuticals, biotechnology, and food processing

E-mail:

Ananda@chinaavm.com

Telephone:

+86-19016718200

Message

Details

1、 Definition of Sanitary Valves

Sanitary valves refer to valves that meet strict hygiene requirements, and their design, manufacturing, and material selection are all based on meeting hygiene standards in industries such as food and medicine. This type of valve has the characteristics of no dead corners, easy cleaning, and corrosion resistance, ensuring the purity of the fluid during transmission.

2、 The function of sanitary valves

1. Flow control: Sanitary grade valves can accurately control the flow of fluids as needed, ensuring the stability of the production process and the quality of the product.
2. Preventing backflow: Valves can prevent fluid backflow and prevent pollutants from entering the production process.
3. Automation control: Some sanitary valves have automation control functions and can be linked with other equipment to achieve intelligent management of the production line.

3、 The role of sanitary valves in safeguarding human health

Sanitary valves, as important equipment in industries such as pharmaceuticals and food, play a crucial role in ensuring human health. Specifically, its role is reflected in the following aspects:

1. Ensure product safety: The application of sanitary valves can ensure the purity of fluids during transmission, thereby ensuring product safety.
2. Preventing cross contamination: The design of valves can prevent cross contamination between different fluids and reduce the risk of product contamination.
3. Improve production efficiency: Sanitary valves are easy to clean and maintain, which can greatly improve production efficiency and reduce production costs.
4. Reduce health risks: By precisely controlling flow and preventing backflow, sanitary valves can reduce potential risks to human health during the production process.

In short, sanitary valves play a crucial role in industries such as pharmaceuticals and food. Understanding and correctly applying sanitary valves is of great significance for ensuring product quality and human health. With the advancement of technology and the increasing demand for product safety, sanitary valves will play a more important role in the future.

Application

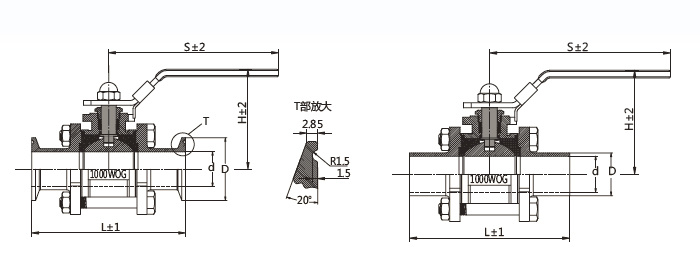

The three-piece all-inclusive ball valve is a hygienic ball valve that is easy to install, disassemble and clean. It is used for gas, liquid and other materials. The valve range includes food, beverage and pharmaceutical and chemical industries.Full-bore and all-inclusive seals and valve design minimize fluid resistance and residue, making this valve the best choice for handling vacuum equipment or viscous fluids.

Technical Characteristics

Full-package ball valve design, no retention, high clean, to meet the CIP, SIP sterilization and cleaning requirements, high temperature 150 ℃ , pressure 25bar, automatic compensation seal design, with torque, long life and other characteristics, the normal switch 100,000 times, Can be equipped with a variety of executive structures, such as the electric head, horizontal pneumatic head, stainless steel three-dimensional pneumatic, the key manual handle, you can also install the control unit, positioner, position sensor,can also be installed automatic control system.

Surface Finish

All the surface CNC, 0.8rn, to RA0.4cm, electrical polishing up to 0.25cm.
