Round Manhole Cover Non Pressure Type
Key words:
Sanitary
Classification:
Sanitary Manhole
Hotline:
Round Manhole Cover Non Pressure Type
The manhole is mainly used in tank equipment in the industrial fields such as food, wine, beverage, and pharmacy.
Outward opening manhole cover
Plastic handwheel or stainless steel handwheel
Inner surface: Ra0.8μm-0.5μm
Outer surface: polished, matt, sandblasted
Processing maximum pressure: 1.0bar
Washer: EPDM, NBR, SILICON, FPM conform to
FDA177.2600

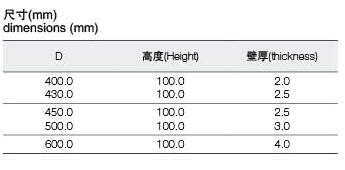

Height: 100, 120, 150
Material: AISI304(1 4301)/316L(1 4404)

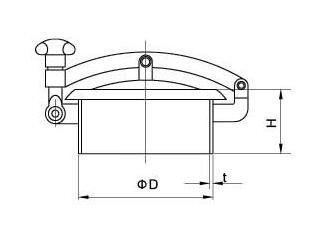

The height (H1) can be made into 120MM, 150MM, etc.; the wall thickness can be changed according to customer requirements
